What is a PowerCON? Your Guide to Locking Power Connectors
Key Takeaways
- A powerCON is a type of locking AC power connector, the standard in professional audio, video, and lighting for its great reliability and safety.1
- Its twist-lock system is a game-changer, stopping accidental unplugging that could ruin a live show or break expensive gear. This is a huge plus over standard power plugs.3
- Not all powerCONs are the same. The older blue/gray type can't be unplugged while "hot," but the newer TRUE1 models can be, and they also have IP65 weather protection.1
- The industry is switching. Pros are moving from the older blue/gray connectors to the newer TRUE1 type for better safety and flexibility, a trend seen all over Reddit and YouTube.3
- Quality matters. Using well-made, certified connectors is key for safety. Cheap knockoffs can be a fire hazard and damage gear, which costs much more in the long run.7
Picture this: you're running sound for a major festival. Thousands of people are waiting, the headliner is about to take the stage, and suddenly your main speaker array goes silent because someone accidentally kicked a power cable loose. In the professional audio, video, and lighting world, this nightmare scenario is exactly why this type of locking connector has become the industry standard.3
But what exactly is a powerCON, and why has it changed how professionals handle power? This guide will cover everything from the technical details to real-world uses, using information from genuine user experiences shared on platforms like Reddit and YouTube.
The Main Benefit: Why Locking Power Connectors Became a Must-Have
Moving Beyond Standard Power Plugs
For years, pros dealt with standard IEC connectors (the common computer-style plugs). These non-locking plugs can easily get pulled out, make poor contact that causes sparks, and are just not reliable in busy places where gear gets moved around a lot.3
The Twist-Lock System
The main feature of a powerCON is its twist-lock system. You just push the connector in and turn it clockwise to get a solid, locked connection.1 This design holds up great against vibrations, yanks, and pulls, which is super important at live events where things have to work right.9
Small but Powerful Design
Even though it's smaller than a typical IEC plug, a powerCON can handle more current—usually 20 amps compared to 10-15 amps.1 This small size lets gear makers build in better power connections without taking up too much space.
Understanding the Connector Family: How They've Changed
The powerCON family has grown over time, with each new version meeting different industry needs. Knowing the differences is important for safety and making sure things plug together correctly.
The Original 20A Blue and Gray System
Color-Coding for Safety
The first system uses a simple color code: blue for power coming in and gray for power going out to the next device.1 They are shaped differently so you can't accidentally plug two power sources together and cause a short circuit.2
The Big Drawback: No Live Unplugging
The original blue/gray system has one major downside that pros need to know: it is NOT meant to be unplugged while power is running through it.2
But what happens in the real world is often different. On Reddit forums for theater and video techs, people say they break this rule all the time because many lights and other devices don't have their own power switches.10 One tech called this problem "the biggest mistake ever," explaining that unplugging it live creates sparks that wear down the metal contacts over time.10
The Modern Standard: The TRUE1 Connector
The Ability to "Hot-Swap"
The TRUE1 connector was made to be a "true mains connector" that can be safely plugged in and unplugged while under load—something pros call "hot-swapping".11 This big improvement changed how people work by getting rid of the risks of handling live power connections.
Built for the Real World
TRUE1 connectors have several key benefits for today's professional work:
- IP65 Weather Protection:When plugged together, TRUE1 connectors are rated IP65, which means they are dust-tight and can handle water spray.1 This makes them great for outdoor festivals and other tough spots.
- Direct Cable Extension:Unlike the old system where you needed a special coupler piece to make a cable longer, TRUE1 male and female ends can plug directly into each other. This makes setting up in the field much easier and removes a potential point of failure.10
TRUE1 TOP Series: For the Toughest Outdoor Use
The TRUE1 TOP (True Outdoor Protection) series is the top of the line, with materials that resist UV light and have even higher IP ratings (up to IP67) for gear that stays outside permanently.15 Users on Reddit often suggest the TOP series for any job that involves being outdoors for a long time.3
Special Types: 32A HC and XX Series
- 32A HC:For high-power gear like amplifier racks, the 32A HC series can handle a lot of current. But, like the original system, it can't be unplugged while live.16
- XX Series:This is an updated version of the classic blue/gray system. It adds the ability to be unplugged live when used with other XX-series parts, bringing older setups up to modern safety levels.1

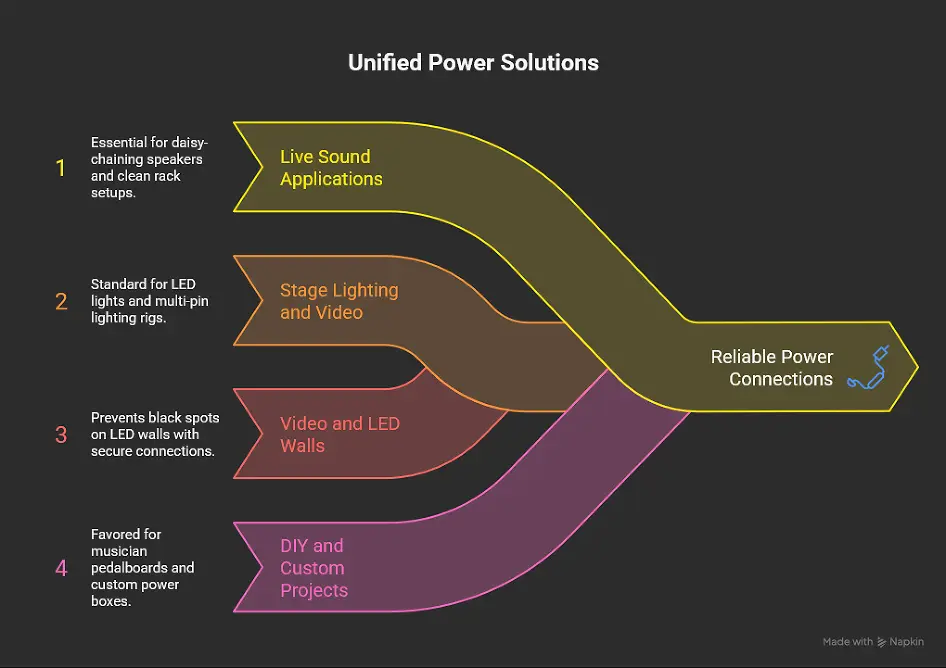

How These Connectors Are Used in the Real World
Live Sound
Sound engineers depend on these connectors for important jobs:
- Line Array Speakers:They allow for "daisy-chaining" powered speakers, where short jumper cables link them together. This means fewer long cable runs from the power source.19
- Custom Rack Setups:On forums, users often share how they build their own rack panels with TRUE1 inputs. This makes for a clean setup that only needs one locking cable for a whole rack of gear.20
Stage Lighting and Video
The lighting world has made these connectors a common standard:
- LED Lights:Modern LED lights of all types almost all have these connections, letting techs power a long string of lights from one outlet.9
- Working with Multi-Pin Connectors:For big lighting rigs, techs often use large 19-pin multi-connectors. A single one of these cables can carry six power circuits up to a lighting truss, where a "breakout" box splits them into six individual powerCON connections for the lights.6
Video and LED Walls
For LED video walls, any power loss means a black spot on the screen. The locking connection is vital for keeping the picture perfect.1 Video techs say that even one loose cable can mess up the whole display.
DIY and Custom Projects
The connector's reliability has made it a favorite for personal projects too:
- Musician Pedalboards:You can find videos and posts of musicians putting powerCON inputs on their guitar pedalboards. This lets them power the whole board with one secure cable instead of a bunch of small adapters.22
- Custom Power Boxes:There are many tutorials showing how to build custom power distribution boxes, creating setups for specific needs.23
Choosing Connectors: Quality and Safety
The Benefit of High-Quality Originals
The original, high-quality connectors are the top choice for reliability and safety. They have certifications like UL and VDE, which mean they have gone through thorough testing for electrical safety and durability.16
Good Alternatives
There are other reputable brands that offer compatible connectors at a lower price. Forum users say that while the plastic might not feel as premium, the performance and safety are solid, making them a good choice for those on a budget.7
The Danger of Fakes
Professional online communities are full of warnings about cheap, unbranded connectors sold on sites like Amazon and eBay.7 These products come with serious risks:
- Material failure:Brittle plastic that can crack.8
- Electrical hazards:Poor contacts and unreliable ground connections.8
- Fire risks:Lack of real safety certifications.7
- Equipment damage:A bad connection can harm expensive gear.
How to Spot Fake Connectors
Techs have a few good ways to spot fakes:
- Brand marking:Genuine connectors have the brand name clearly on the body.26
- Color consistency:Real blue/gray connectors have back pieces that match the color of the front. Many fakes use blue back pieces on both.26
- Build quality:Genuine parts have better quality plastic and a smooth locking feel.
- Certification marks:Look for real safety marks, not just a "CE" logo, which can be self-declared on cheap imports.7
Are They Waterproof? Understanding IP Ratings
A common question is about weather protection. The answer depends on the version:
- Original Blue/Gray Series:These are only rated IP20, which is for dry, indoor use only.13
- TRUE1 Series:When connected, these are rated IP65, making them resistant to dust and water spray. This is good for outdoor use in most weather.1
- TRUE1 TOP Series:These have an even better rating, up to IP67, which protects against being underwater for a short time. This makes them good for permanent outdoor setups.15
A New Idea: The Connector as the Power Switch
Here’s a thought that comes from looking at the industry: the TRUE1 connector is so reliable that it has changed how professional gear is designed.
Some equipment makers now build speakers and other gear without any physical power switches. They depend completely on plugging and unplugging the powerCON to turn the device on and off.28 This approach has a few pluses:
- Saves money:No need for an expensive switch that can fail.
- Saves space:Leads to smaller designs.
- Simple to use:The connector is the switch.
- More reliable:One less mechanical part to break.
This is a big change in design, where the connector is now a key part of how the device works.
Locking Connectors vs. Multi-Pin Connectors
While powerCONs connect individual devices, large 19-pin connectors (often called Socapex-style) have a different job. These can carry six separate power circuits in one thick cable, which is great for getting power from a distribution box to a cluster of equipment.29
The two systems work as a team: the multi-pin cable brings power in bulk, and a breakout cable at the end splits it into individual powerCON connections for each device.31 This setup is efficient and can scale from small gigs to huge festivals.
How to Wire a PowerCON Connector
Putting a connector together correctly is important for safety and reliability:
- Prep the cable:Strip the outer jacket and inner wires to the right length.33
- Connect the terminals:Tighten the screws correctly. Too loose and the contact is bad; too tight and you can strip the threads.34
- Add the strain relief:Putting the cable clamp on correctly is key for making sure the cable doesn't pull out and for keeping it weather-sealed.33
- Put it all together:Make sure all the parts are lined up and the back is tightened down.26
Online tutorials often point out that you may need special tools to get the torque just right, especially for the weatherproof versions.36
Making Sure Your Setup is Ready for the Future
For pros buying new gear, the choice is clear: standardize on the TRUE1 TOP series. This choice gives you:
- Top safety:The ability to unplug live gets rid of risks.1
- Weather handling:IP65+ protection for any environment.15
- Future compatibility:The whole industry is moving this way, so parts will be available for a long time.3
- Flexibility:The ability to hot-swap makes work easier.5
The general agreement among pros is clear: while TRUE1 parts cost more at first, the safety, reliability, and work benefits are worth the price for any serious job.
Frequently Asked Questions
- Can I plug a blue powerCON into a gray one?
No, they are shaped differently to stop you from connecting two power sources, which would be dangerous.1
- Is it safe to unplug the old blue/gray powerCON when the device is on?
No, the original system is not made for that. Unplugging it live can create sparks that damage the connector over time.2
- What's the difference between TRUE1 and TRUE1 TOP?
TRUE1 TOP uses materials that are better at resisting UV light and has a higher IP rating (up to IP67) for permanent outdoor use, while the standard TRUE1 is rated IP65.15
- Are cheap powerCON-style connectors from Amazon safe?
Professionals strongly advise against using uncertified knockoffs for any important job because of safety risks like fire and equipment damage.7
- Can TRUE1 connectors be used to extend a cable?
Yes, unlike the original system, TRUE1 male and female ends can plug directly into each other to easily make a cable longer.10
